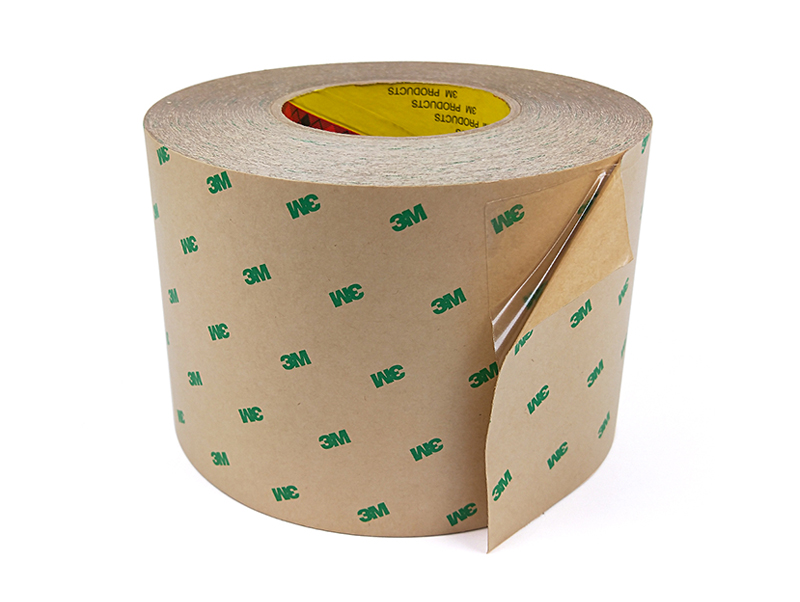

3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690
  • 3M™ Double Coated Tape 9690

    Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure and moderate heat, from 100°F (38°C) to 130°F (54°C), will assist the adhesive in developing intimate contact with the
    bonding surface.
    To obtain optimum adhesion, the bonding surfaces must be clean, dry and well unified. Some typical surface cleaning solvents are isopropyl alcohol or heptane.*
    Ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. However, once properly applied, low temperature holding is generally satisfactory.
    *Note: Carefully read and follow the manufacturer’s precautions and directions for use when working with solvents. These cleaning recommendations may not be compliant with the rules of certain Air Quality Management Districts in California; consult applicable rules before use.

    Application Ideas

    • Cellular phone lens attachment
    • Foam Lamination
    • Nameplates
    • Appliques
    • Decorate Trim
    • Thermal and sound dampening applications in the electronics and appliance industry.
    • Higher adhesion strength for foam lamination and graphic attachment.

    3M™ Double Coated Tape 9690 with 3M™ Laminating Adhesive 300MP features a thin polyester film for dimensional stability and improved handling with ease of die cutting and laminating.

    3M™ Double Coated Tape 9690

    3M™ Double Coated Tape 9690

    3M™ Double Coated Tape 9690

    3M™ Double Coated Tape 9690

    3M™ Double Coated Tape 9690

    Humidity Resistance: High humidity has minimal effect on adhesive performance. No significant reduction in bond strength is observed after exposure for seven days at 90°F (32°C) and 90% relative humidity.
    UV Resistance: When properly applied, nameplates and decorative trim parts are not adversely affected by exposure to direct sunlight.
    Water Resistance: Immersion in water has no appreciable effect on the bond strength. After 100 hours at room temperature, the high bond strength is maintained.
    Temperature Cycling Resistance: High bond strength is maintained after cycling four times through:
          4 hours at 158°F (70°C)
          4 hours at -20°F (-29°C)
          4 hours at 73°F (22°C)
    Chemical Resistance: When properly applied, nameplate and decorative trim parts will hold securely after exposure to numerous chemicals including oil, mild acids and alkalis.
