1.High dielectric strength, conformable and provides good mechanical protection with minimum bulk
2.Good resistance to abrasion, moisture, alkalis, acids, corrosion and varying weather conditions(including ultraviolet exposure)
3.Meets requirements of IEC 60454-3-1-5/F-PVCP/90 and has VDE Marks Licence
4.Available in 10 different Colours

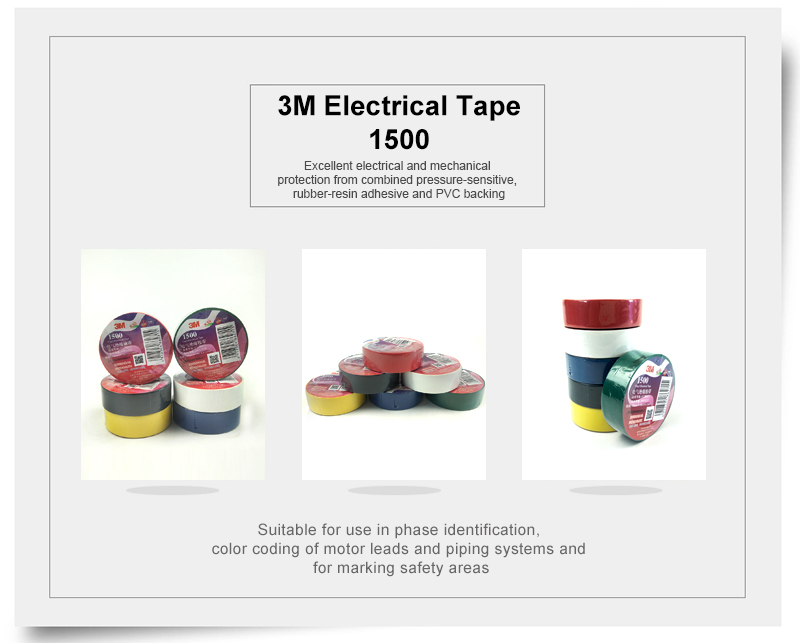

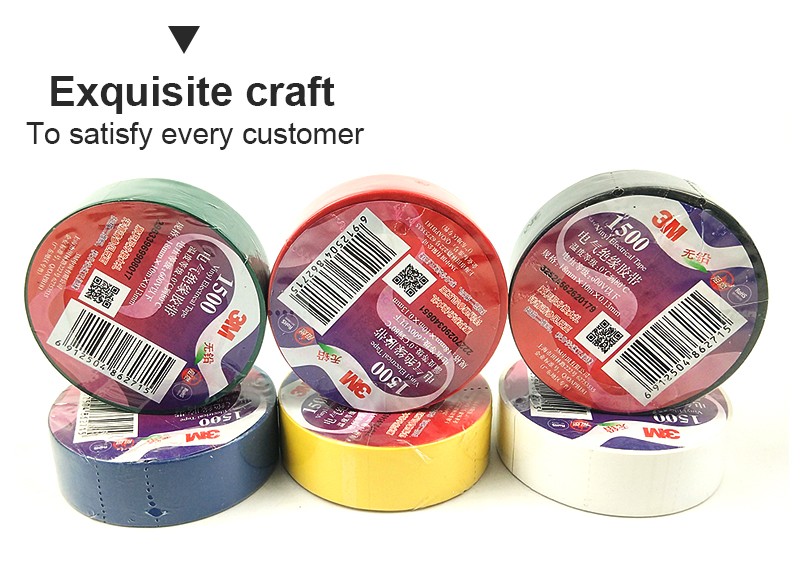

3M 1500 pvc electrical insulation fire resistance tape
size:0.13mm*18mm*10M we can offer you other size
fire or flame resistance
Technical parameters:
--temperature:80°C
--Voltage: ≤600v
--dielectric strength: >39.37kv/mm
--Dielectric Resistance:>1012Ω
--Maximum tensile rate:150%
--breaking strength:141bs/in
--Viscosity to the steel:18oz./in
--Viscosity to the base: 18oz./in
Practical rubber insulation foam tape, authorized by UL. The normal working temperature is 80°C, and when the temperature low to 0°C, it can working normally. It has high wear resistance,
Moisture resistance and chemical resistance.
Application Scope
The major insulation of the wire and cable connector, and the voltage is below 600V
The protective cover of the high-voltage cable connector
The blinding of the wire and cable
