Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape
  • Self-Fusing EPR High Voltage Splicing Tape Would Be Equivalent To 3M 23 Tape

    • ·Rubber resin provides excellent adherence to irregular surfaces

    • ·Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables

    • ·Suitable for jacketing high-voltage splices and terminations

    • ·Available in narrow and wide widths (0.75 in.–2 in.)


    Share
    • ·Rubber resin provides excellent adherence to irregular surfaces

    • ·Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables

    • ·Suitable for jacketing high-voltage splices and terminations

    • ·Available in narrow and wide widths (0.75 in.–2 in.)

    • ·Temperature rated for continuous adhesion to 194°F (90°C)

    • ·Withstands temperatures up to 194 degrees F (90 degrees C)

    • ·Special polyester liner

    • ·ASTM Approved & RoHS 2002/65/EC Compliant

    High and low voltage insulation, self-fusing rubber tape. Primary electrical insulation for splicing all solid dielectric cables through 69kV

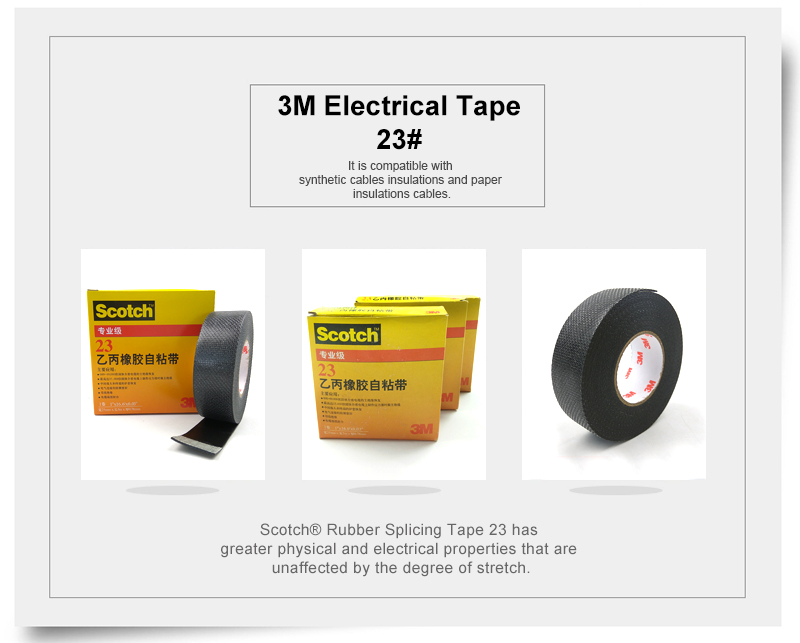

    Scotch® Rubber Splicing Tape 23 has greater physical and electrical properties that are unaffected by the degree of stretch. This tape is highly resistant to split, crack and flag when exposed to indoor or outdoor environments. It is designed to splice and terminate cables whose emergency overload temperatures can reach 266 degrees F (130 degrees C). This self-fusing ethylene propylene rubber, high-insulating voltage tape has a snakeskin liner that is easily removed as the tape is applied. It is compatible with synthetic cables insulations and paper insulations cables. ASTM Approved & RoHS 2002/65/EC Compliant.

    Adhesive Material
    Rubber Resin
    Adhesive Type
    Rubber
    Agency Approvals
    ASTM D-4388 type 1, 2 & 3 | HH-I-3825B
    Applications
    Electrical Maintenance, Insulation
    Backing Material
    Ethylene Propylene Rubber, Paper, Polyester lining
    Backing Thickness (Metric)
    0.178 mm, 0.76 mm
    Brand
    3M™, Scotch®
    Breaking Strength
    8 lb/in
    Color
    Black, Cream, Cream
    Color Family
    Black, White
    Dielectric Strength (V/mil)
    800, 800 V/mil
    Elongation
    10 %, 1000 %
    Elongation at Break
    0.1, 1000%
    Emergency Overload Temperature (Celsius)
    130°C
    Emergency Overload Temperature (Fahrenheit)
    266°F
    Family
    Scotch® Rubber Splicing Tape 23
    Flame Retardant
    Yes
    High Temperature Rating
    194°F (90°C)
