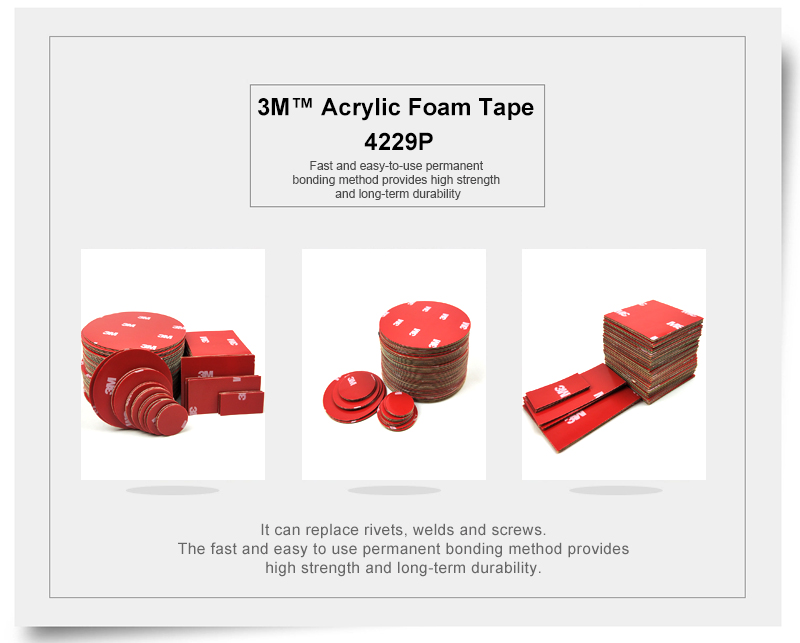

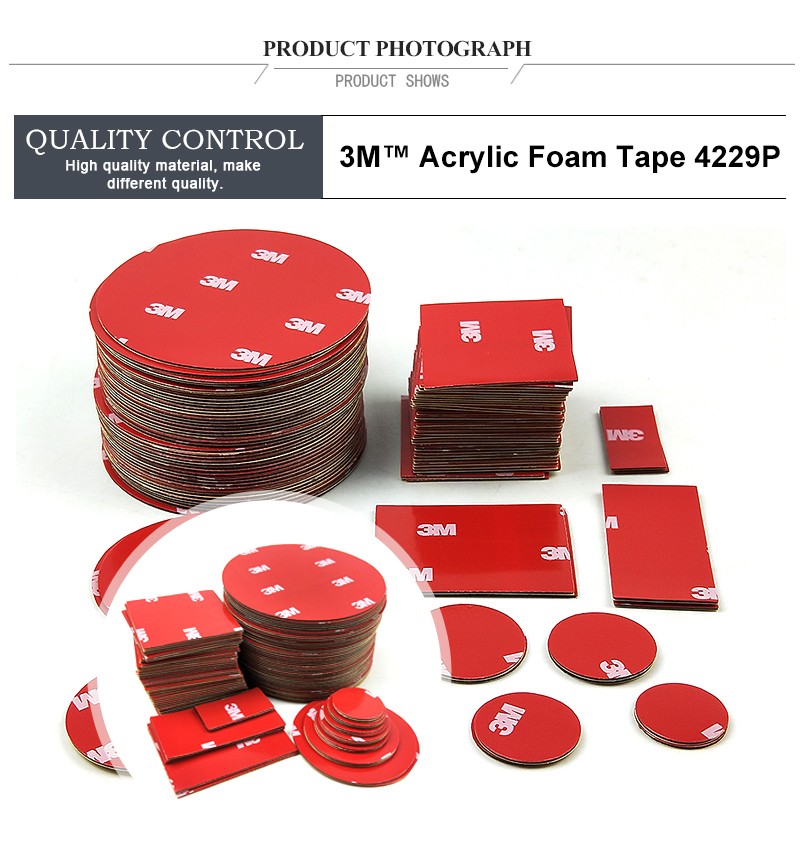

3M™ Acrylic Foam Tape 4229P

Dark gray, closed cell .76 mm acrylic foam core delivers stress relaxation under load
Features two different adhesives – one on each side of the tape for effective bonding
Liner-side adhesive is designed for bonding to rigid clear coat systems
Non liner-side is designed for use with adhesion promoter on automotive trim materials

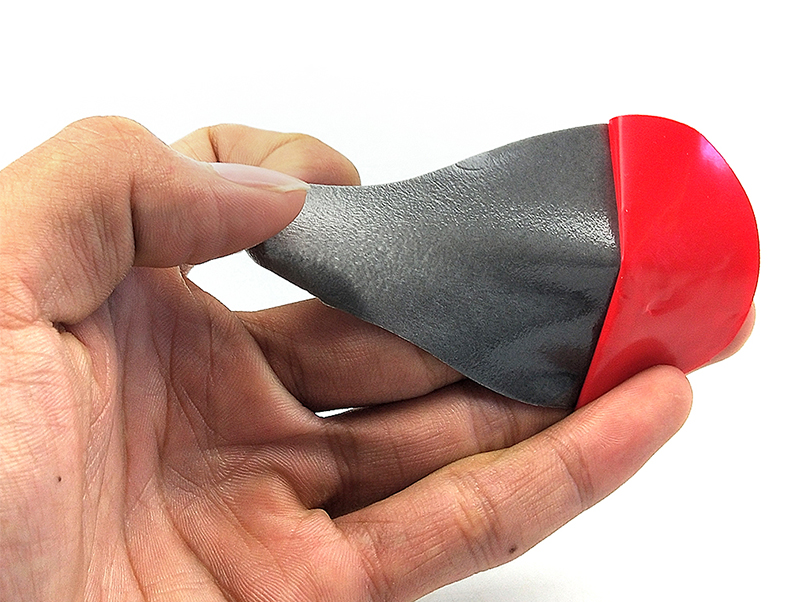

Exhibits good conformability and excellent plasticizer resistance

Inquire Now None

Product Overview

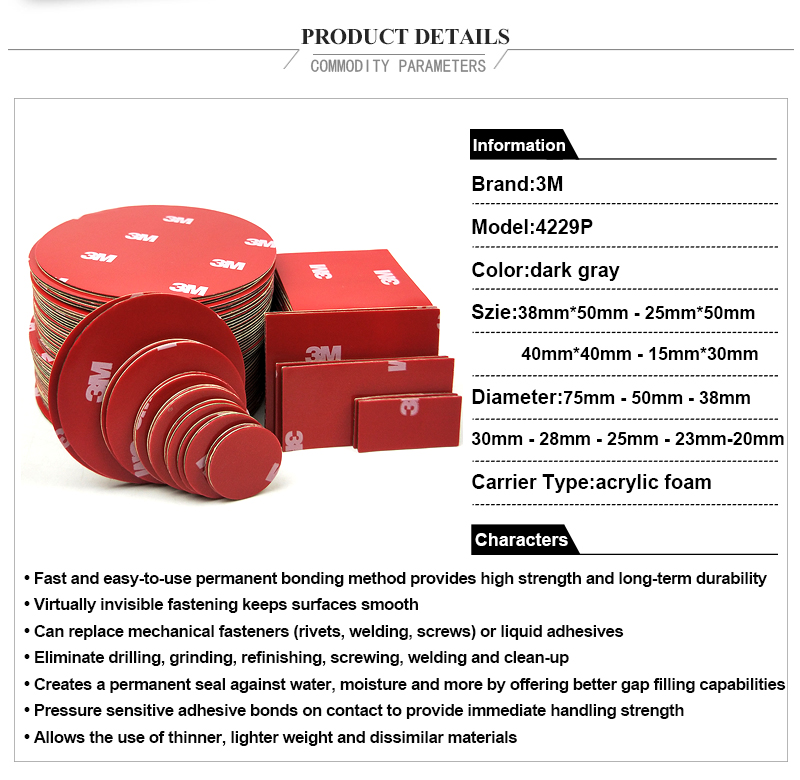

Quick details

die cut 3M auto tape 4229P

brand	3M
item number	4229P
material	acrylic foam
adhesive	acrylic
color	gray
thickness	0.8MM
release liner	film liner with "3M" Logo
short temperature resistance	149°c
long termperature resistance	93°c

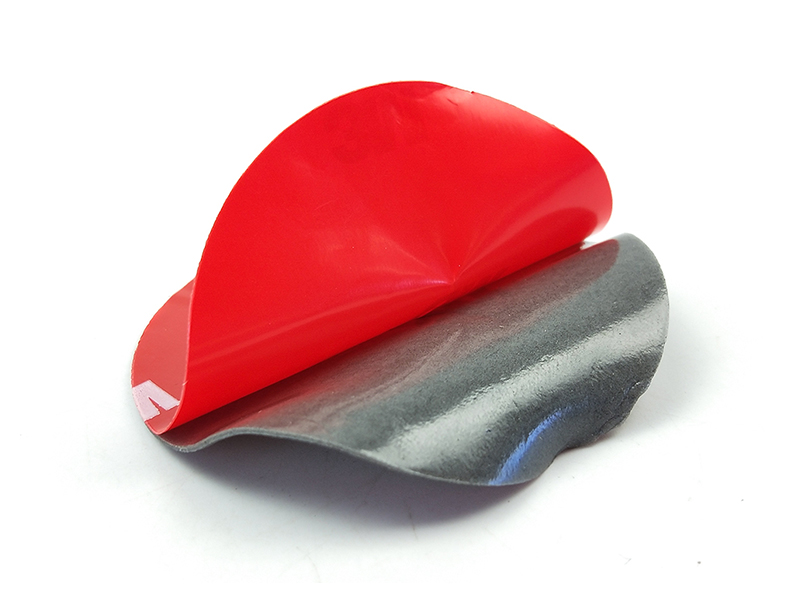

3M Double Sided Acrylic Foam Tape 4229P is a 0.8mm thick, gray, heat resistant tape commonly used for the attachment of automotive exterior trim parts such as body side moldings. It has a red polyethylene release liner imprinted with the 3M logo.

3M Pressure Sensitive Acrylic Foam Tape 4229P is characterized by high performance peel and shear adhesion, high internal strength, good conformability and excellent plasticizer resistance. The acrylic foam core has unique viscoelastic properties that allow it to elongate and relax when put under load, thereby minimizingstress on the adhesive bond line. These properties allow the tape to bond more effectively to a wide variety of automotive surfaces.

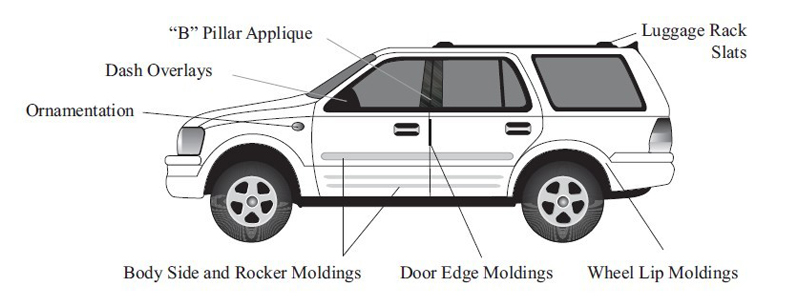

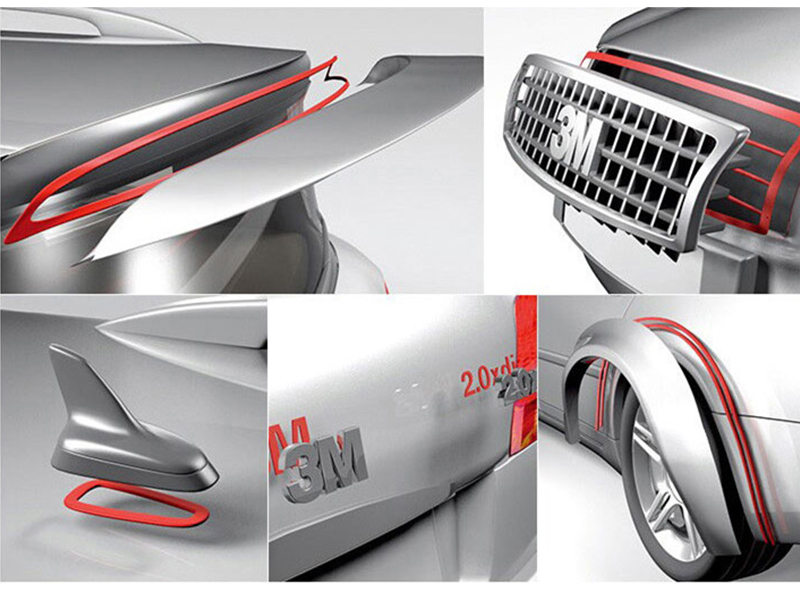

Typical applications would include body side moldings; stainless steel, ABS and PVC rocker panels; wheel lipmoldings, door edge moldings, nameplates ornamentation, luggage rack slats, wind and rain deflectors, and dashboard

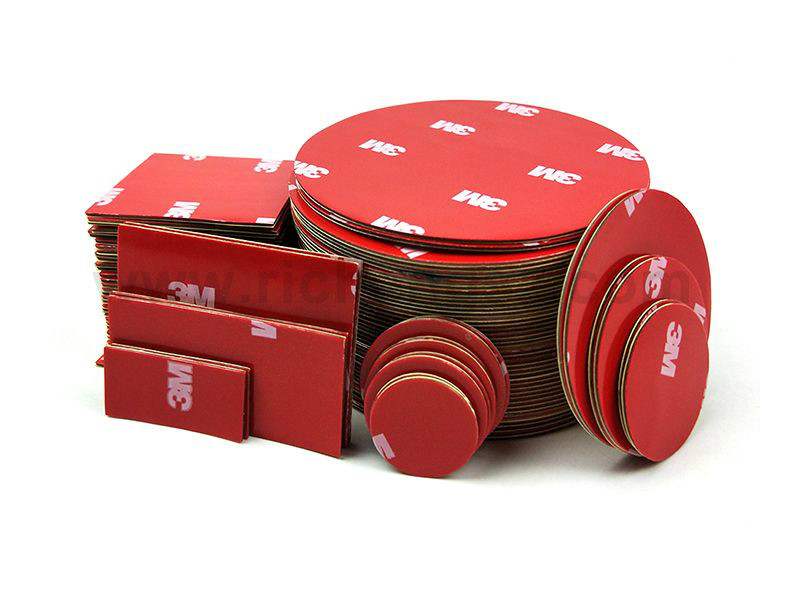

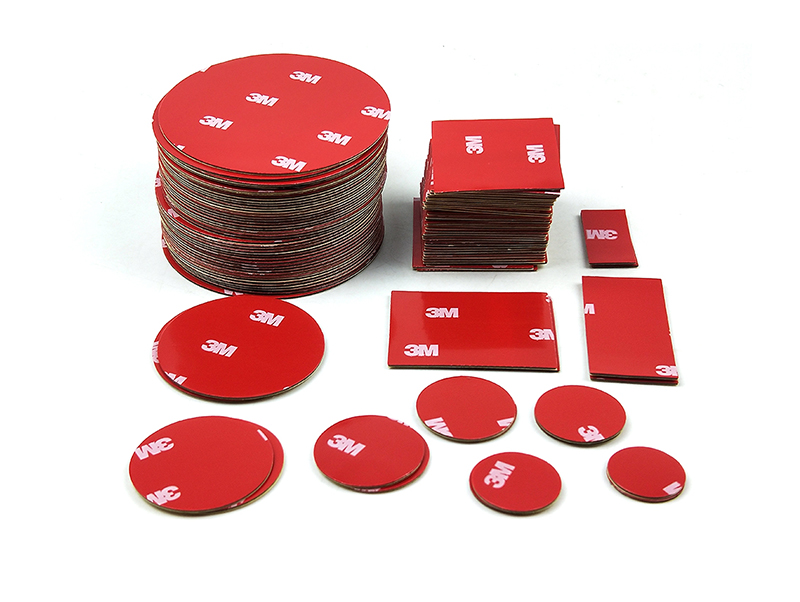

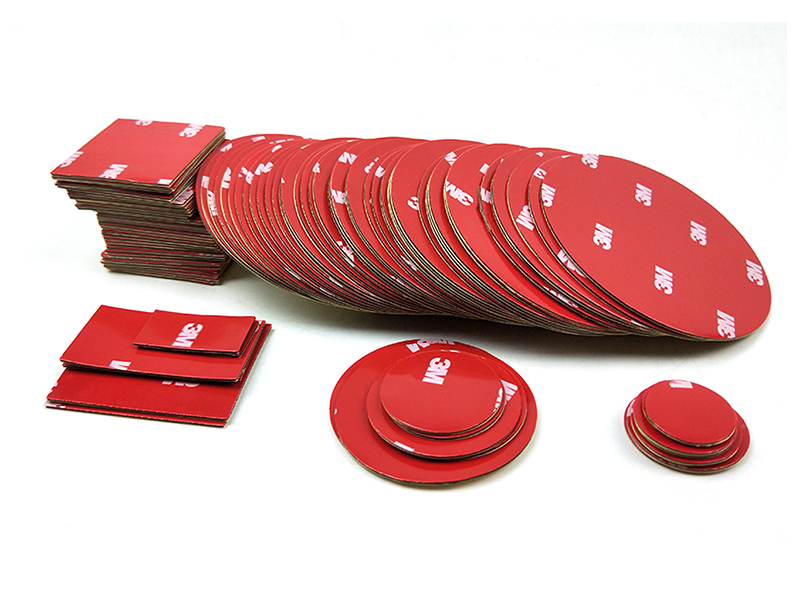

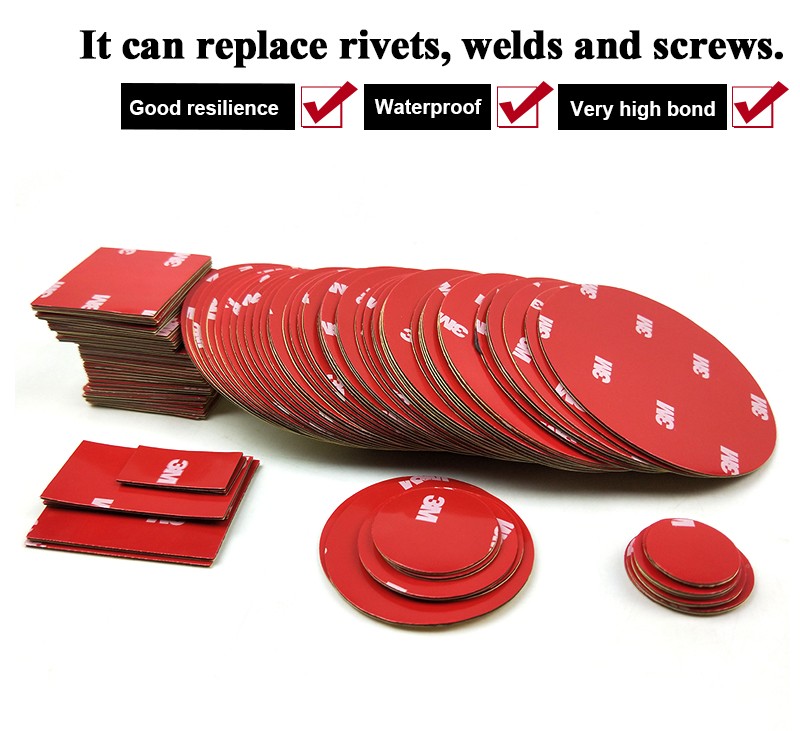

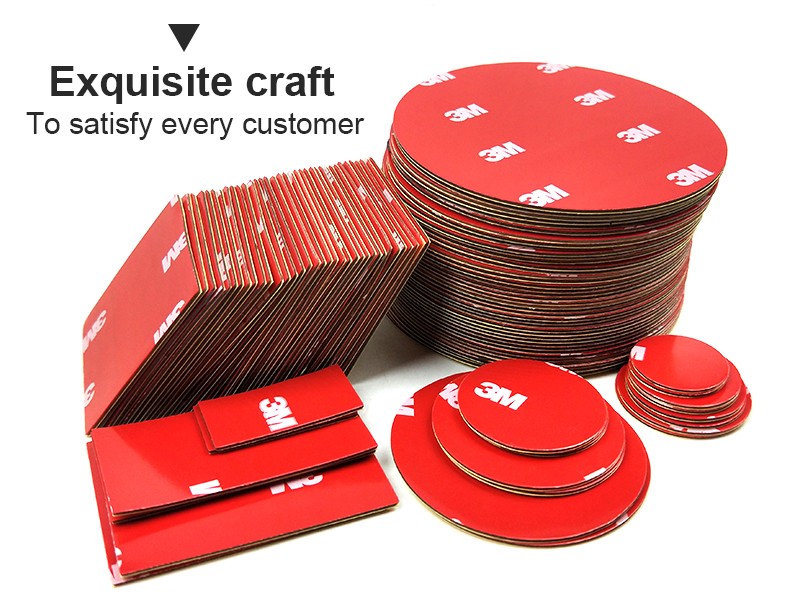

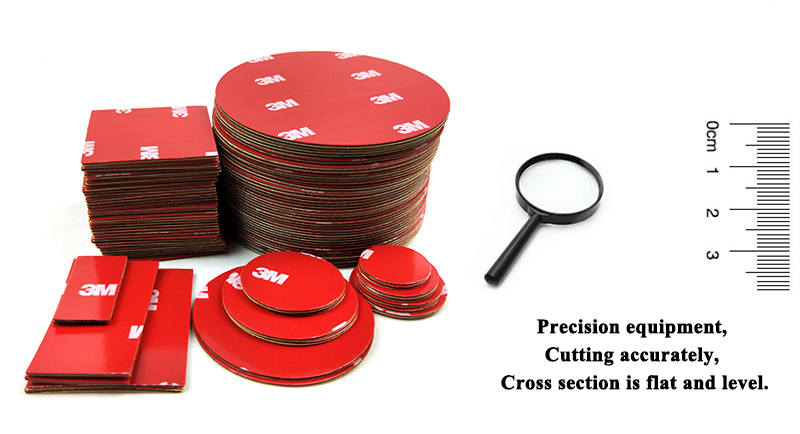

3M 4229P auto tape, original size is 610MM*33M, we offer professional die cutting service according to customer's request or drawing.
